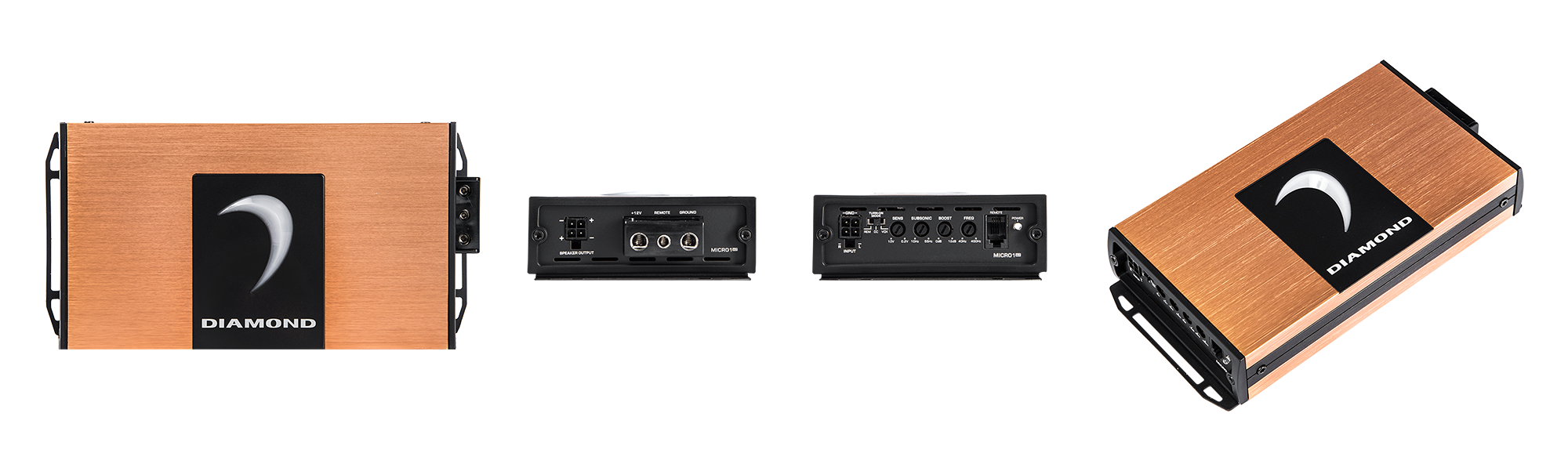

DIAMOND MICRO1V2

DETAILS

•         Ultra-compact, high density aluminum alloy chassis provides superior thermal stability

•         Four layer, glass epoxy circuit board for enhanced performance and reliability

•         Full Range Class D amplifier technology

•         Balanced differential inputs for superior noise rejection

•         Input sensitivity from 200mV to 10V accepts line (RCA) and Speaker level input

•         Selectable auto-turn-on modes: Signal Sensing (VOX), 12V Remote (REM) and DC offset (DC)

•         Fully variable, 12dB per octave, electronic crossover

•         Variable 18dB per octave sub-sonic filter

•         Adjustable Bass EQ (45Hz: 0dB to +12dB) / remote level control included

•         Illuminated logo

SPECIFICATIONS

• RMS Power Rating
  • RMS Power (2Ω): 300W
  • RMS Power (4Ω): 175W
  • Bridged (mono 1Ω): 500W
  • Bridged (mono 2Ω): 300W
  • Bridged (mono 4Ω): 175W
• Type
  • Topology: Full Range Class D
• Power Supply
  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0VDC - 17.0VDC
  • Idle Current: (0.7A)
• Distortion
  • THD 4 (1KHx @ 4Ω): 0.5%
  • S/N Ratio (A weighted @1W): -85dBA
  • S/N Ratio (A weighted @FP): -101.1dBA
• Input Sensitivity
  • Low Input Level: 200mV - 10.0V
  • High Input Level: N/A
• Input Impedance
  • Low Input Level: 20KΩ
  • High Input Level: 20KΩ
• Output Stage
  • Output Impedance: 0.011Ω
  • Damping Factor (50Hz@4Ω): >250
  • Bandwidth (-3dB): 10Hz - 350Hz
• Crossover (-12dB/Oct)
  • Variable High-Pass: N/A
  • Variable Low-Pass: 40Hz - 400Hz
  • Variable Sun-Sonic: 10Hz - 55Hz
• Fuse Ratings
  • ATC: 25A
• Dimensions
  • Length x Width x Height (Inches): 7.89 x 4.0 x 1.46
  • Length x Width x Height (mm): 200.5 x 103 x 37.2
