DIAMOND MICRO4V2 (4-Channel)

Save 13%
$549.99
$479.95

MICRO4V2 - 4 Channel Full Range Digital Amplifier

Sound quality in a small footprint can be found in Diamond Audio’s MICROV2 series of amplifiers. Featuring ultra-efficient full-range Class D topology, these compact amplifiers deliver huge power for their size! The added feature of advanced Rollback/Thermal protection that allows you to enjoy continuous and uninterrupted play without shutting down. Installation possibilities are endless! When you’re looking for quality and performance in a small package, look to MICROV2 from Diamond Audio.

Ultra-compact, high density aluminum alloy chassis - Balanced differential inputs for noise-free operation - Full-range digital Class D technology with Direct FET power MOSFET output stage - 12dB per octave adjustable crossovers and Diamond bass boost EQ - 12dB @ 45Hz - Advanced rollback power circuitry keeps your amp cool and your music playing – Selectable 3 option Auto Turn-On Mode circuit designed to work with ANY OEM head-unit, simplifying installation

Features:

  • 150W x 4CH @ 2Ω / 80W x 4CH @ 4Ω / 300W x 2CH @ 4Ω Bridged RMS Power Output
  • Input Sensitivity: 0.2-10 Volt
  • Crossover Filter : 40-400Hz, 12dB Per Octave Slope
  • Frequency Response: 10-33KHz
  • Selectable REM / VOX / DC Turn On Modes
  • Selectable X-Over: LPF / FLAT / HPF
  • Selectable 2CH / 4CH Input Modes

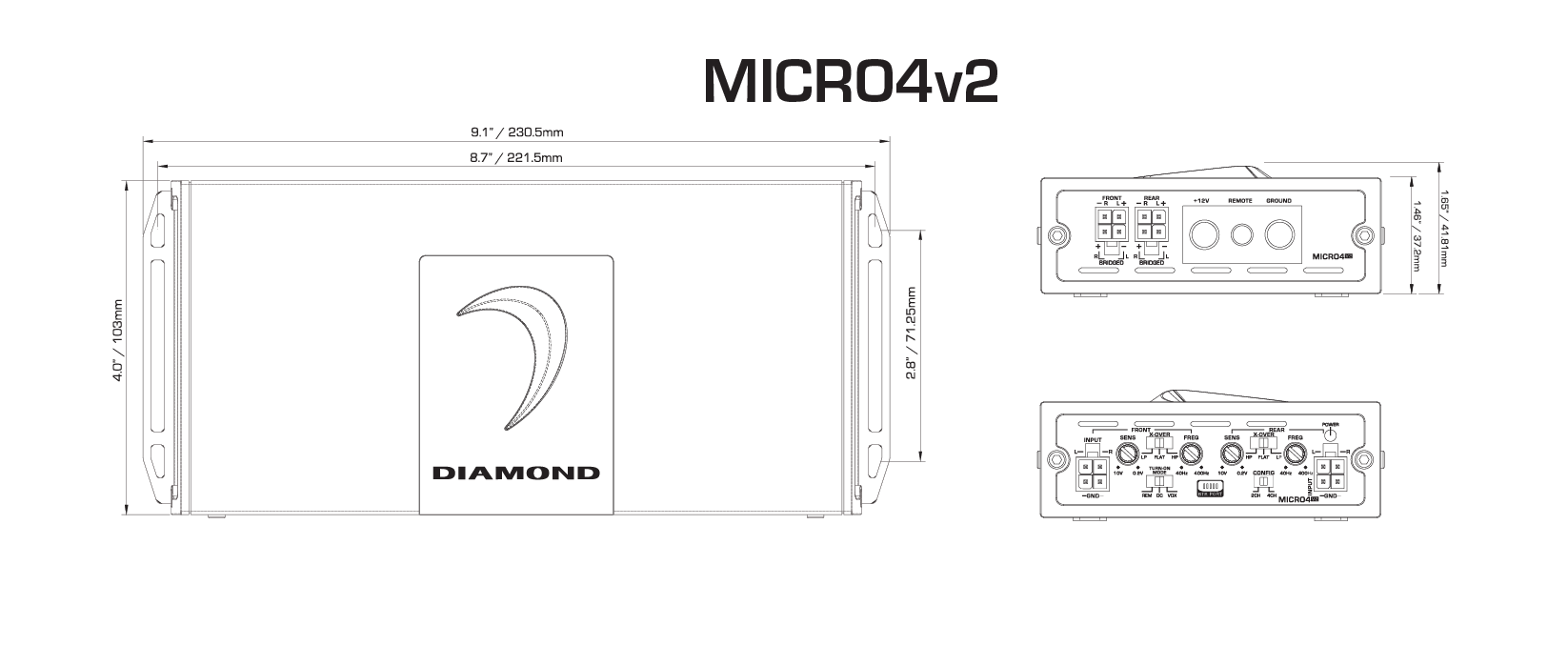

  • Dimensions: 9.1” x 4.1” x 1.46” / 230.5 x 103 x 37.2 mm
  • Disconnected RCA Input & Speaker Output Harness Kits Included
