DIAMOND MICRO5V2

Save 5% Save 5%
Original price $579.99
Original price $579.99 - Original price $579.99
Original price $579.99
Current price $549.99
$549.99 - $549.99
Current price $549.99

DETAILS

  •         Ultra-compact high density aluminum alloy chassis provides superior thermal stability
  •         Four layer, glass circuit board for enhanced performance and reliability
  •         Full Range Class D amplifier technology
  •         Bridgeable for high power operation (CH1+CH2/CH3+CH4)
  •         Balanced differential inputs for superior noise rejection
  •         Input sensitivity from 200mV to 10V accepts Line (RCA) and Speaker level input
  •         Input selector switch (2CH/4CH)
  •         Selectable auto-turn-on modes: Signal Sensing (VOX), 12V Remote (REM) and DC offset (DC)
  •         Fully variable, 12dB per octave, electronic crossovers
  •         Remote level control for Mono channel (CH5) included
  •         Built-in BTR Port (MICRO-USB) to connect our optional Bluetooth receiver-controller
  •         Illuminated logo

SPECIFICATIONS

  • RMS Power Rating
    • RMS Power (2Ω): 150W x 4/350W x 1
    • RMS Power (4Ω): 80W x 4/200W x 1
    • Bridged (mono 1Ω): N/A
    • Bridged (mono 2Ω): N/A
    • Bridged (mono 4Ω): 300W x 2/200W x 1
  • Type
    • Topology: Full Range Class D
  • Power Supply
    • Power Supply: Full PWM
    • Power Supply Threshold: 10.0VDC - 17.0VDC
    • Idle Current: (0.7A)
  • Distortion
    • THD 4 (1KHx @ 4Ω): 0.5%
    • S/N Ratio (A weighted @1W): -85dBA
    • S/N Ratio (A weighted @FP): -101.1dBA
  • Input Sensitivity
    • Low Input Level: 200mV - 10.0V
    • High Input Level: N/A
  • Input Impedance
    • Low Input Level: 20KΩ
    • High Input Level: 20KΩ
  • Output Stage
    • Output Impedance: 0.018Ω
    • Damping Factor (50Hz@4Ω): >70
    • Bandwidth (-3dB): 10Hz - 35Hz
  • Crossover (-12dB/Oct)
    • Variable High-Pass: Flat or Fixed 70Hz
    • Variable Low-Pass: 40Hz - 400Hz
    • Variable Sun-Sonic: N/A
  • Fuse Ratings
    • ATC: 60A

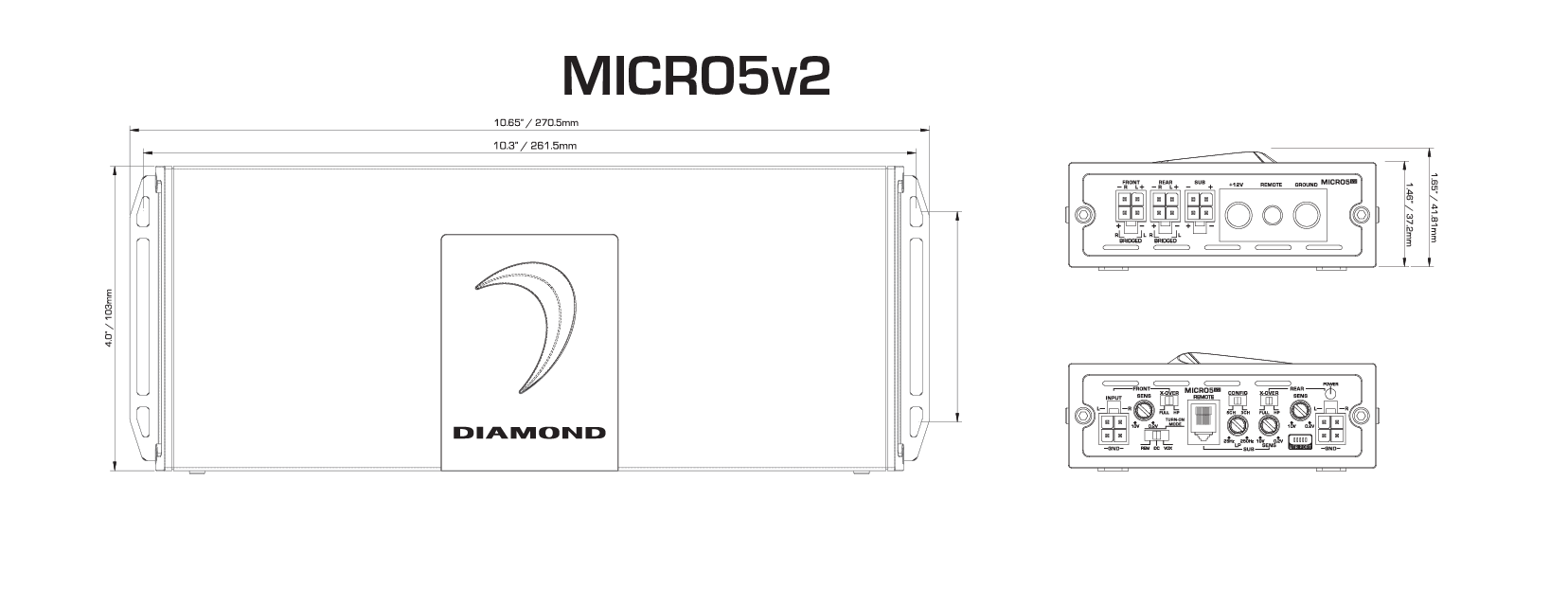

  • Dimensions
    • Length x Width x Height (Inches): 10.65 x 4.0 x 1.46
    • Length x Width x Height (mm): 270.5 x 103 x 37.2
